QUALITY · ALWAYS TRUSTED

01.Waterproof performance
The surface of the composite trench cover is arc-shaped, with high middle and low ends. Rainwater can automatically flow out from both ends to prevent it from flowing into the cable trench.
02.Light Weight
The weight of the composite trench cover per square meter is only 1/3 of that of the cement cover plate and 1/4 of that of the cast iron cover plate, so that the labor intensity is reduced and the transportation cost is reduced even if the construction is carried out by workers.
03.Beautiful appearance
The composite trench cover can be made into colorful and elegant.
04.Antiskid performance
The surface of the composite trench cover shall be provided with oil-proof patterns to prevent pedestrians from slipping in rain and snow or anti-robot wheels from slipping and affecting inspection.
05.High strength
The load of the composite trench cover can reach more than 1000kg.
06.Flame retardant performance
The high composite trench cover can be added with flame retardant in the production, which can play the role of fire prevention and flame retardancy in sub station
07.Long life
The composite trench cover has the characteristics of corrosion resistance, acid and alkali resistance, ultraviolet aging resistance and the like, can be repeatedly used, and is not easy to be damaged after repeated lifting and checking, it can be last up to twenty years.

The buckle groove trench cover also has the following advantage

Good drainage: even if the rainwater flows in from the tiny gap between the trench cover, it will be discharged along the drainage groove designed by the buckle groove, achieving complete waterproofing.

Wind and sand protection: each trench cover is over lapped and pressed to prevent the possibility that the composite trench cover is blown by strong wind due to light weight and good sealing.

Anti-bulge: a small gap can be left between the trench cover to prevent the trench cover from being bulged due to thermal expansion in summer.

Steady: Covers overlap to prevent the following base from moving, jumping and ringing.

The material of the composite cable trench cover plate is mainly composite polymer material, which is relatively lightweight and easy to move and construct, providing a lot of convenience for normal maintenance. The composite cable trench cover plate can be lifted and lowered according to demand, but it will not cause damage to the surface of the cable trench cover plate, and it will not cause damage. As the product is poured and formed, its appearance is relatively beautiful and smooth. The composite cable trench cover plate has strong bearing capacity, which is a basic requirement of the product.

The inspection of the cable trench cover plate of the State Grid of China is generally carried out according to the following methods.

1. Appearance: No significant forging defects, clear pattern, and clear handwriting.
2. Flatness inspection: Use a special mold to check the flatness of the cover plate. Create a mold with a diameter of 37mm and a depth of 37mm for the cover plate. Place the cover plate in the mold without shaking or noise, and the cover plate should not be higher than the mold with a gap of 3mm. The sampling method is selected for load-bearing load, and the pressure test is conducted on a press machine. The cover plate bears a pressure of 360KN or 210KN and is recognized as a qualified batch.
3. Well circle inspection: Use a special tool to check the diameter of the well circle. The diameter of the well circle is slightly larger than the diameter of the cover plate, and the depth is the same as the height of the cover plate. The bolt holes should be inspected one by one using a special inspection tool. 4. Acid resistance test: Slowly flow hydrochloric acid through the cable trench cover plate, using an amount of about 3 times the volume of the cover plate. Rinse with water, and the pH of the outlet water is about 5. Use a NaCl solution that is 3 times the volume of the cover plate to flow through. Flow NaOH through the cover plate and rinse with water until the effluent pH is around 9. After the acid flow is completed, rinse with deionized water until the pH value of the effluent is above 6, and it can be put into use.


Product information

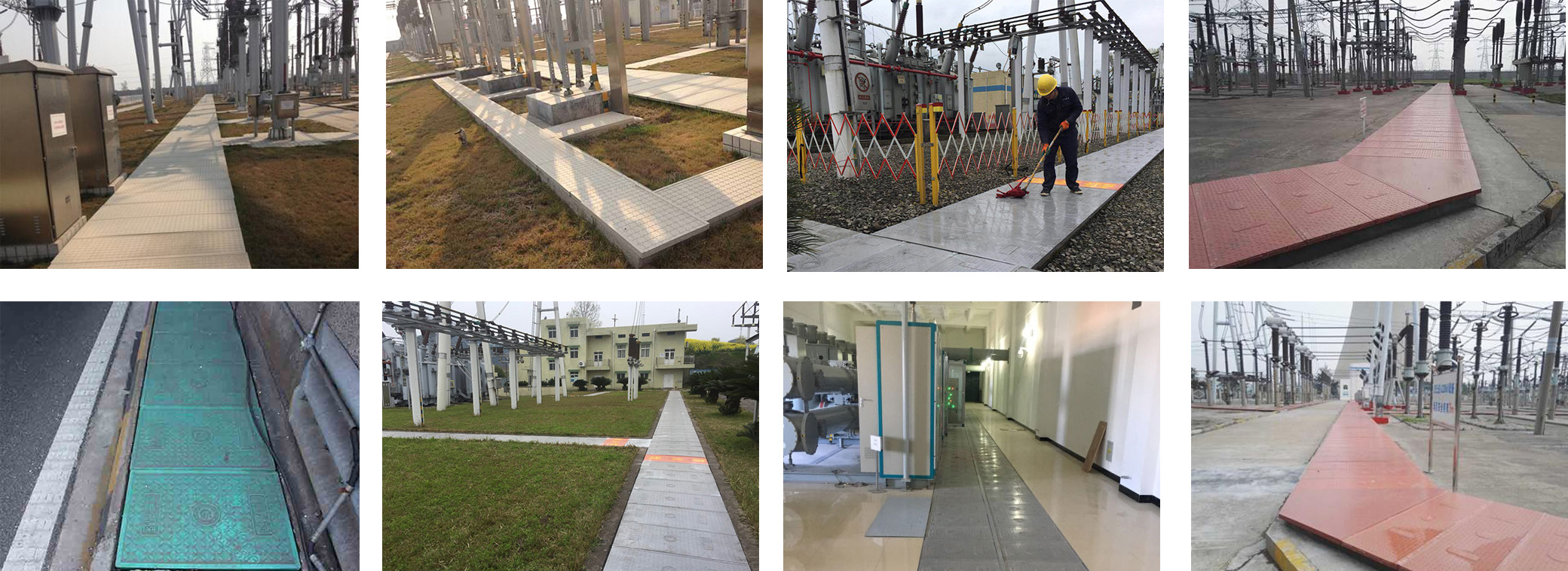

Application

Production

Packing

Transport

1.Standard plywood case, its compressive strength and bearing quality is better

2.The board area is bit, the soil structure is good, it is better in leakproofness and waterproof

3.When importing, the plywood case is with fumigation-free, the procedure is simple.

4.Delivery Detail: within 7-15 days after received your payment
