Round-SMC

DSD Manhole Cover’s top surface material has a better slip-resistance value in a wet, dry or worn state to increase safety.

Classification:

Round Manhole Cover

E-mail:

supply@dsd-manholecover.com

Product Consultation
  • Product Details
  • Model JQ-700A Technology Compression moulding
    Material SMC Net Weight     *
    Load A15 Work Temperature -50℃-160℃
    Clear Open 630mm Test Approval ISO CE SGS
    Cove Diameter 700mm Service Life >30 years
    Lock Style Bolts Warranty 2 years
    Hinged&Gasket Optional
    Colour Optional



    Specification

    Product Code Load Clear Open
    Dia    		 Manhole Cover
    Dia    		 Manhole Frame
    OD    		 Manhole Cover
    Depth    		 Manhole Frame
    Height    		 Function
    O D F h H
    DSD-CO600 D400/ C250/ B125/ A15 600 660 755 100 70 lockable / sealing / Hinge
    DSD-600 D400/ C250/ B125/ A15 630 720 870 96 70 lockable / sealing / Hinge



    Features

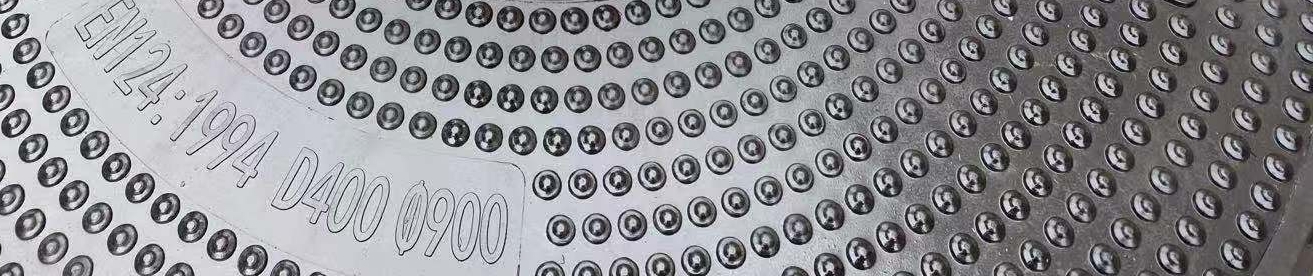

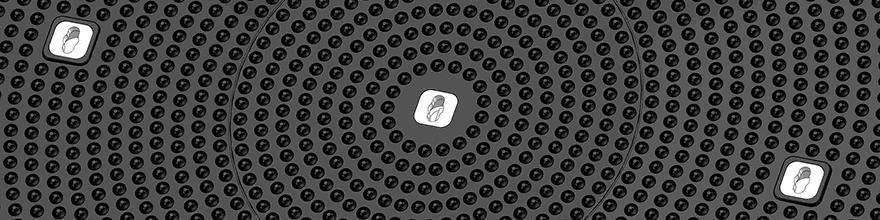

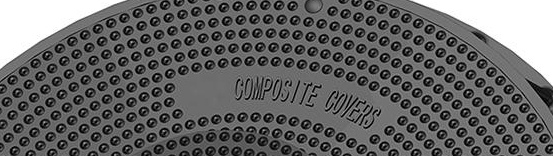

    Anti-Slip surface
    DSD Manhole Cover’s top surface material has a better slip-resistance value in a wet, dry or worn state to increase safety.





    Watertight Seal
    Integrated cover creates a watertight seal between the cover and frame.





    With Central Inspection Port Cover
    There is a locking sealing inspection port cover with a net opening of ∅ 350mm(13.8") in the middle of the manhole cover, which is waterproof



    Material

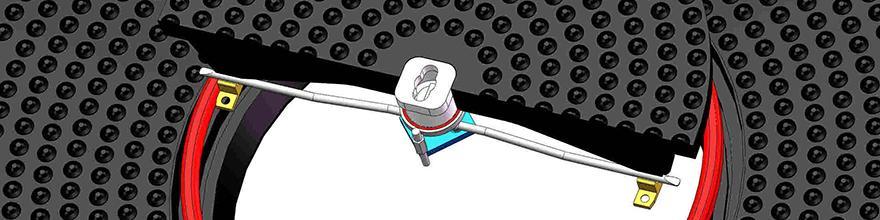

    frame and inspection cover are made of SMC FRP composite material. The removable side sealing structure adopts corrosion-resistant EPDM rubber, the aluminum sleeve of removable sealing handle adopts aluminum alloy, three m10x40 hexagon socket head locking screws adopt 304 stainless steel, and the locking mechanism of inspection cover adopts aluminum alloy and 304 stainless steel





    Lockable
    Lockable access covers not only improves site and location security and provides security against theft and malicious damage.





    Customized LOGO available
    DSD manhole cover have professional engineering department and we can make the special design and mould according customer’s size, pattern, color, load, logo, function requirements.


    Advantage

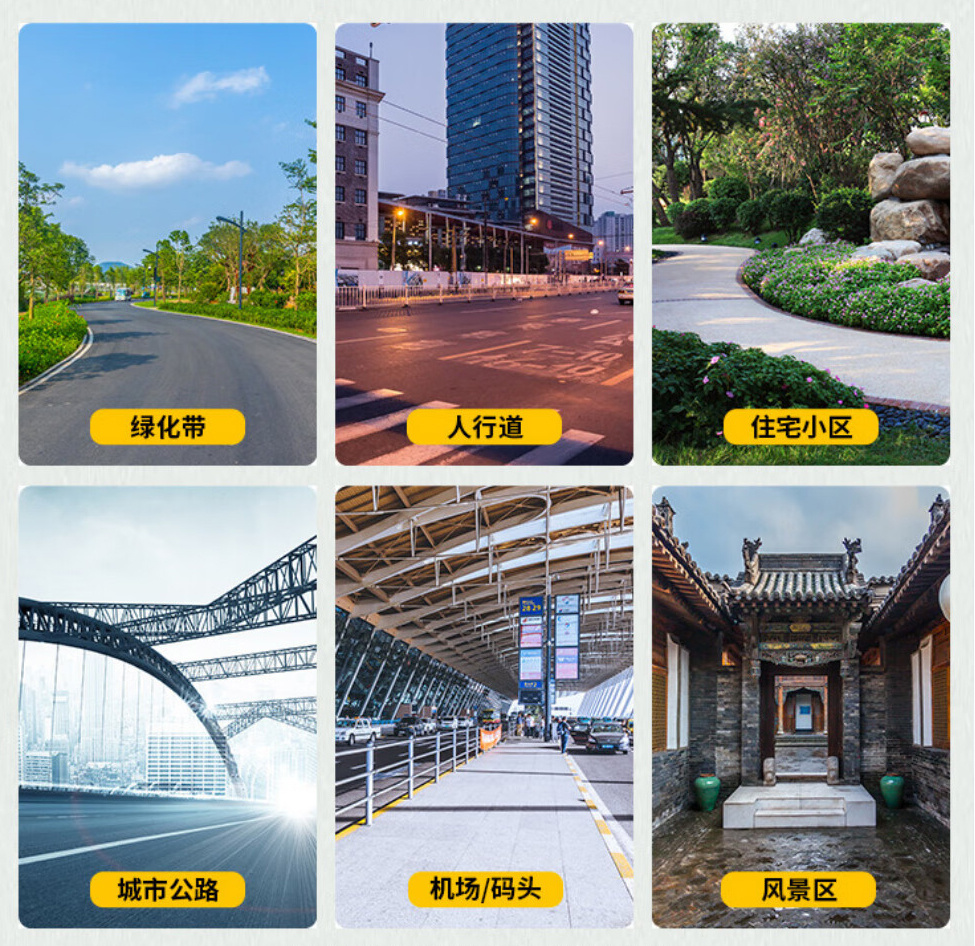

    Application

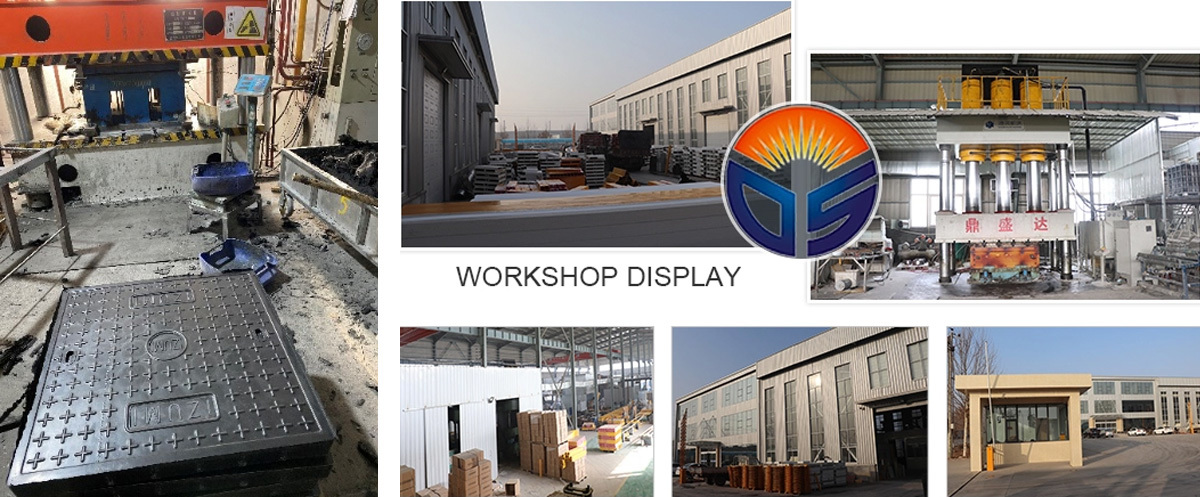

    Production



    Packing



    Transport



    1.Standard plywood case, its compressive strength and bearing quality is better

    2.The board area is bit, the soil structure is good, it is better in leakproofness and waterproof

    3.When importing, the plywood case is with fumigation-free, the procedure is simple.

    4.Delivery Detail: within 7-15 days after received your payment



Q & A

Q

What is SMC materials?

A

SMC composite is a short form of “Sheet Molding Compound”. It’s composed of resin, fiberglass and other chemical polymers, it’s homogeneous material and often used in aerospace composite structures.

The outstanding advantages of SMC composites:

  1. It can maintain good dielectric performance under high frequency, and does not reflect or block the microwave. It is suitable for application in crowded or narrow places, and can effectively avoid the danger of electric shock.
  2. It has effective resistance to water, gasoline, alcohol, electrolyte salt, acetic acid, sodium potassium compounds, asphalt, acid base soil and acid rain corrosion.
  3. Under the combined action of three-dimensional network molecular structure and reinforcing fiber, the material has good impact resistance, easy to be machined, easy to drill and cut, and accurate positioning.
  4. It has strong impact resistance to avoid deformation, with high tensile strength, bending strength and impact toughness.
  5. As a smokeless and non-toxic materials, it does not contain halogens, and it’s an environmentally friendly material that can meet the needs of future development.
  6. The fire retardant can reach to FV0 level, and the smoke & gas level is quasi-safety level 1 (ZA1), which meets the requirements of domestic and international UL94 standards.
  7. It’s poor conductor of heat, has low deformation rate of high-temperature resistance which can reduce the influence of environmental temperature difference on the internal structure of products.
  8. It’s able to adapt to any kind of harsh weathers, it can be used in the climate of -50°C - +160°C for a long time. The protection level is IP54, which can maintain good physical and mechanical properties.
