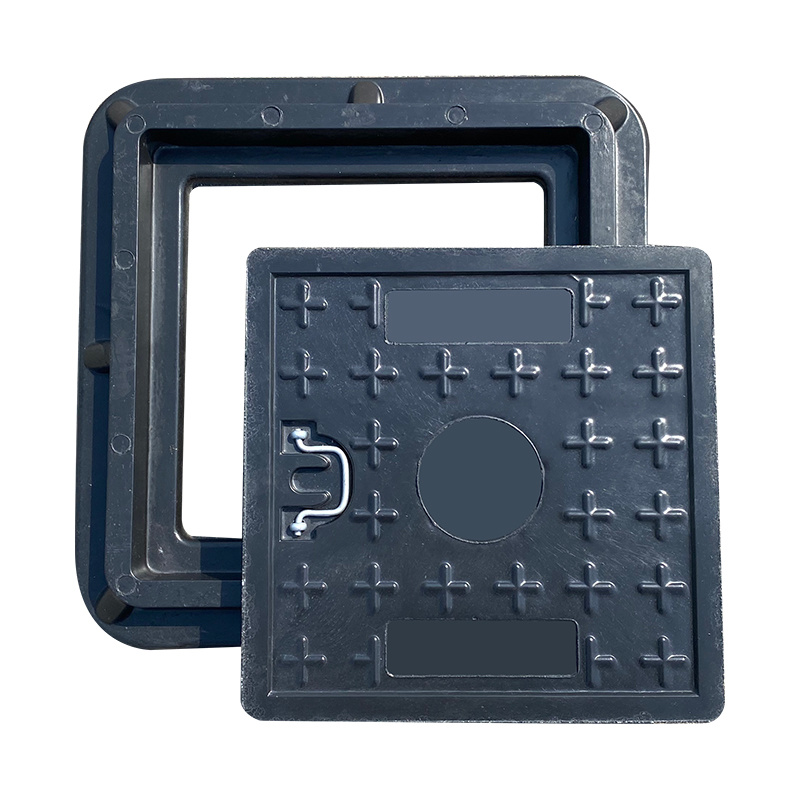

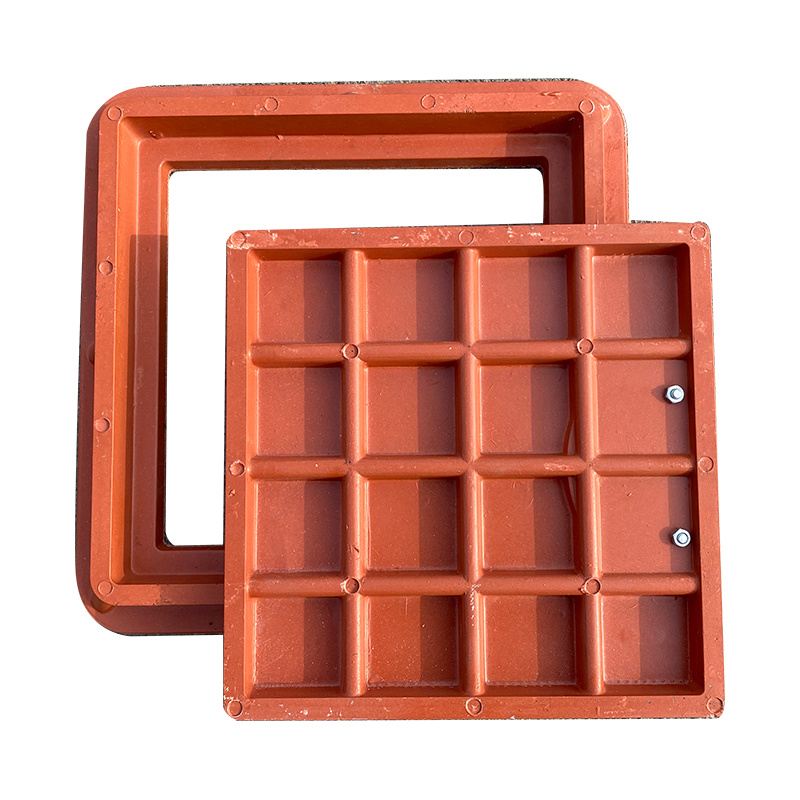

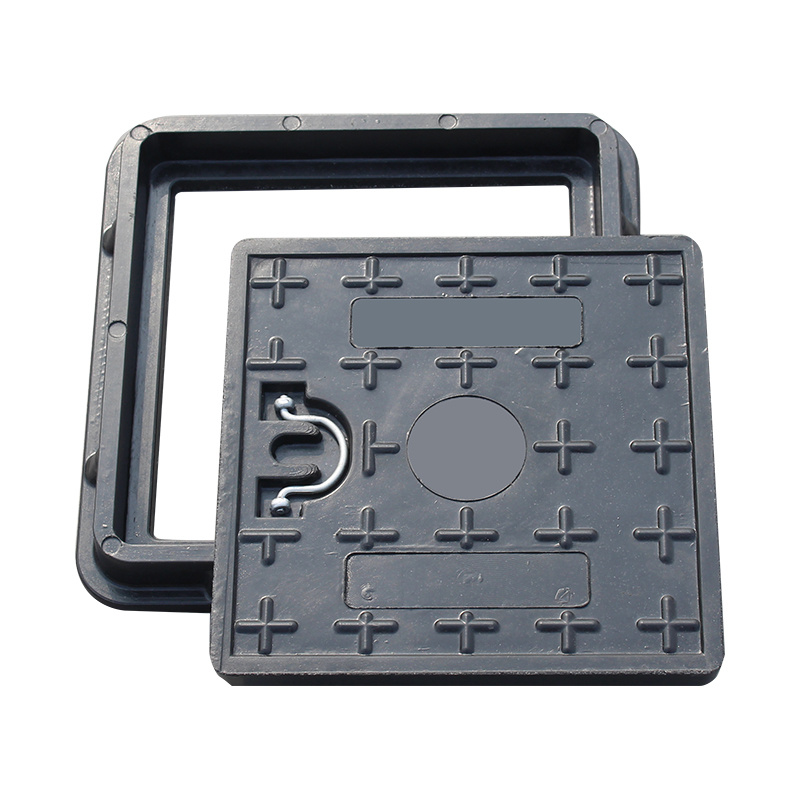

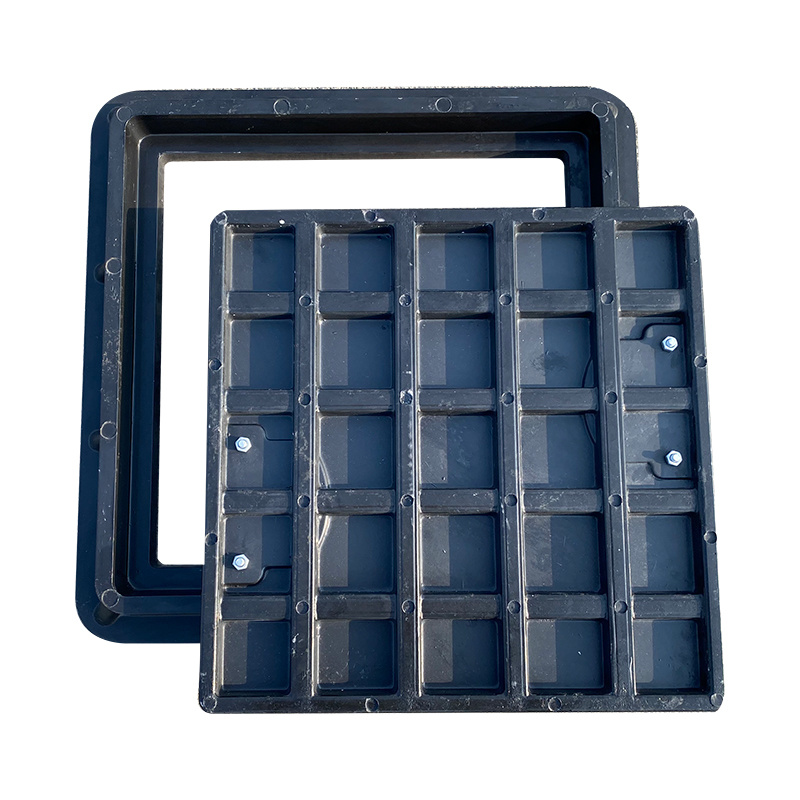

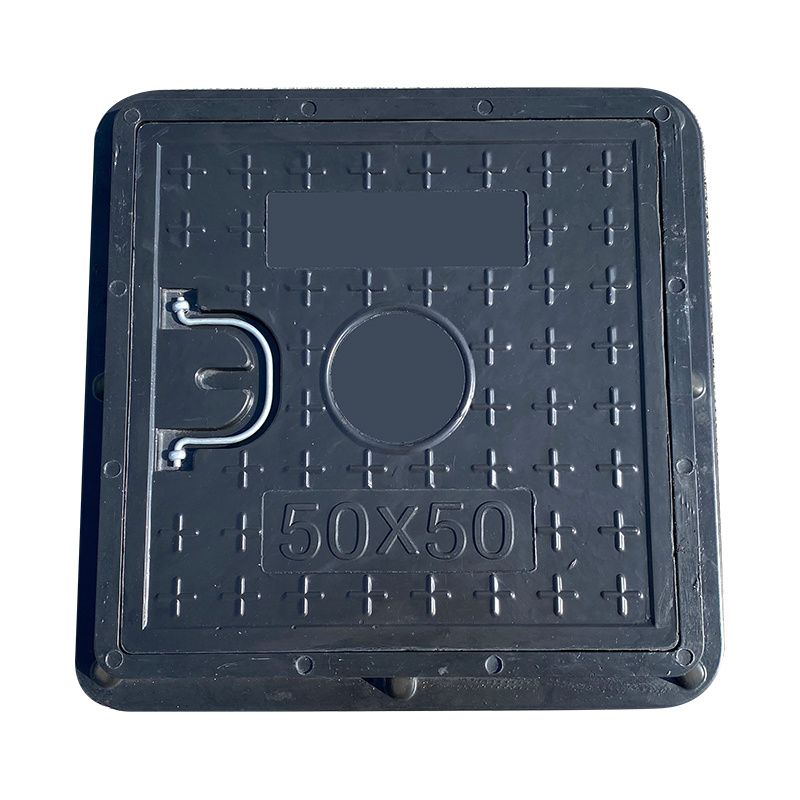

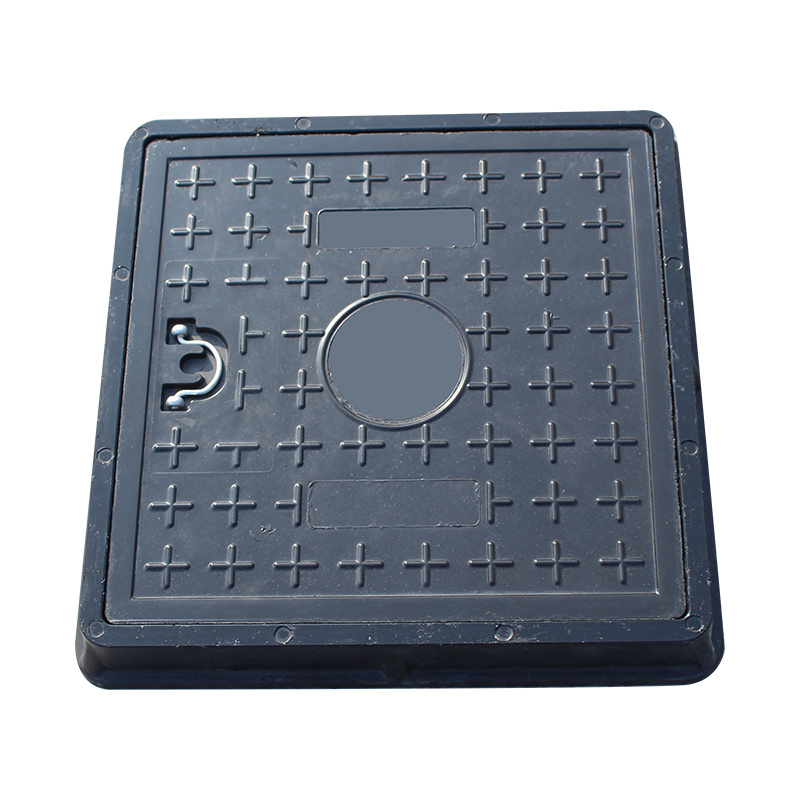

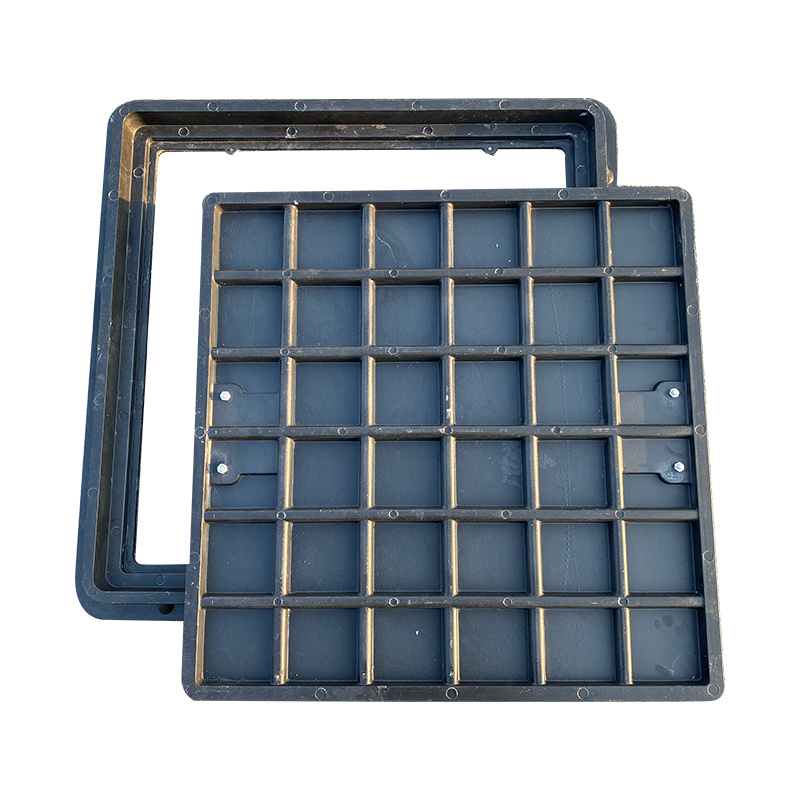

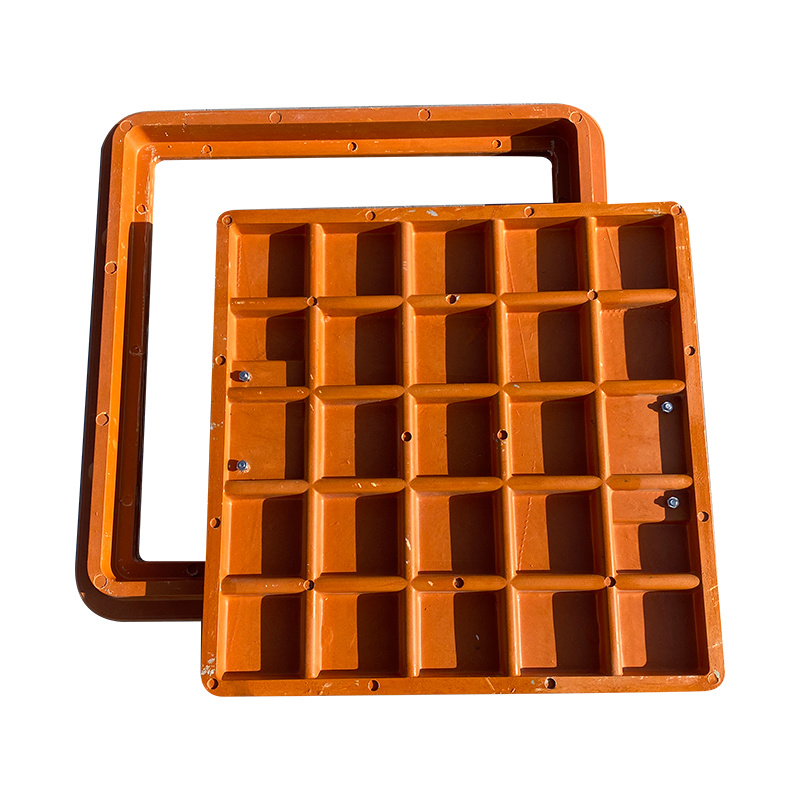

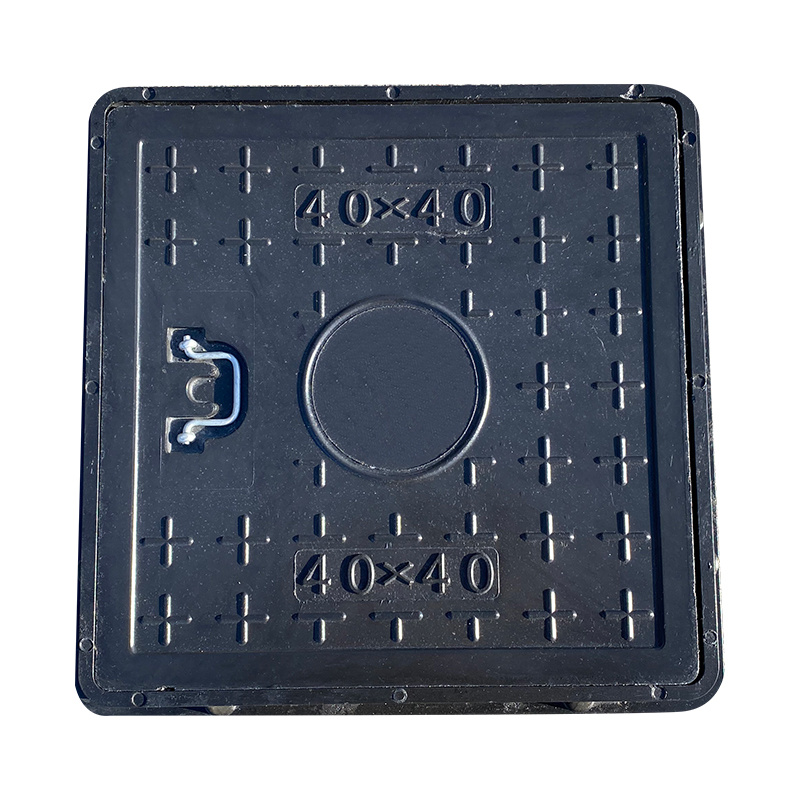

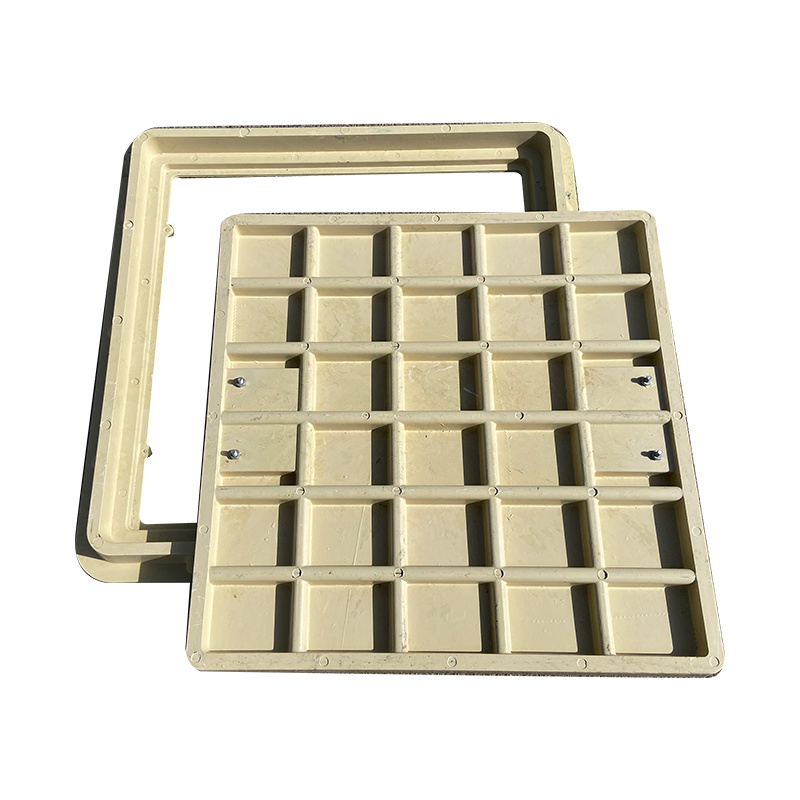

Square manhole cover with handle A15

DSD Manhole Cover’s top surface material has a better slip-resistance value in a wet, dry or worn state to increase safety.

Classification:

Square Manhole Cover

E-mail:

supply@dsd-manholecover.com

Product Consultation

Product Details

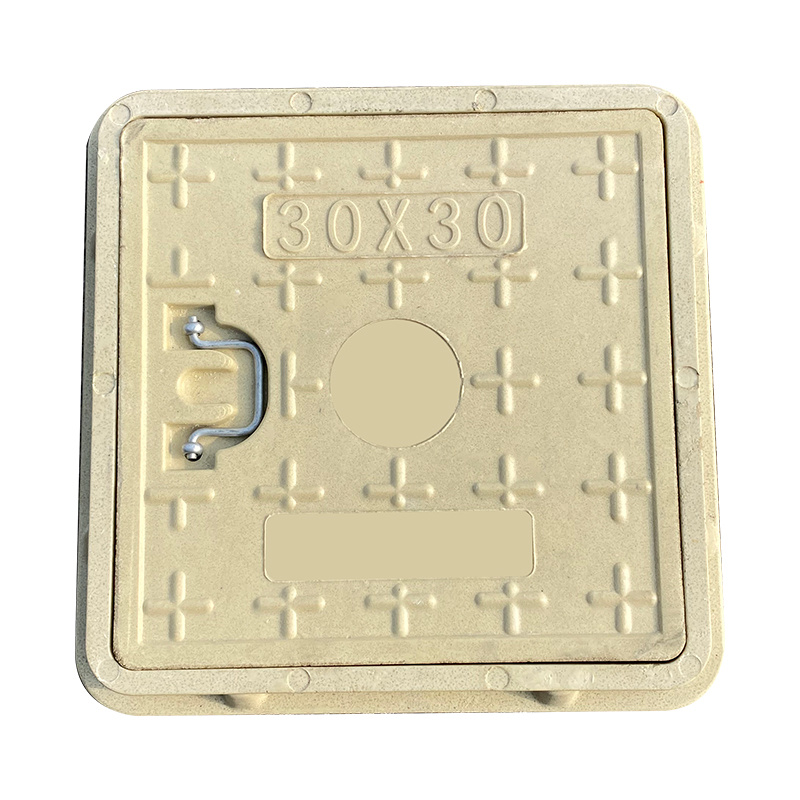

300x300

400x400

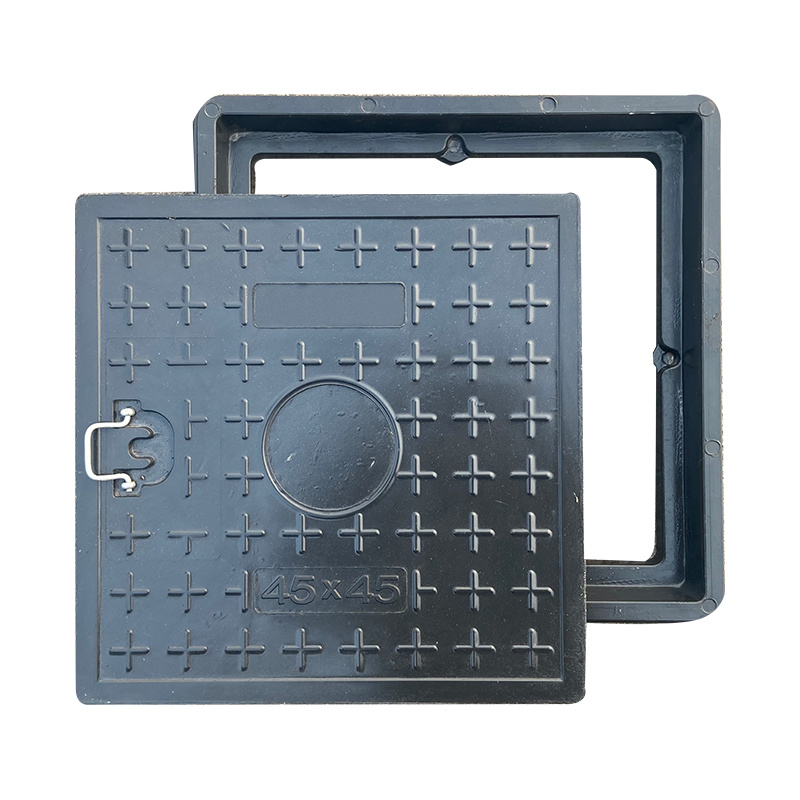

450x450

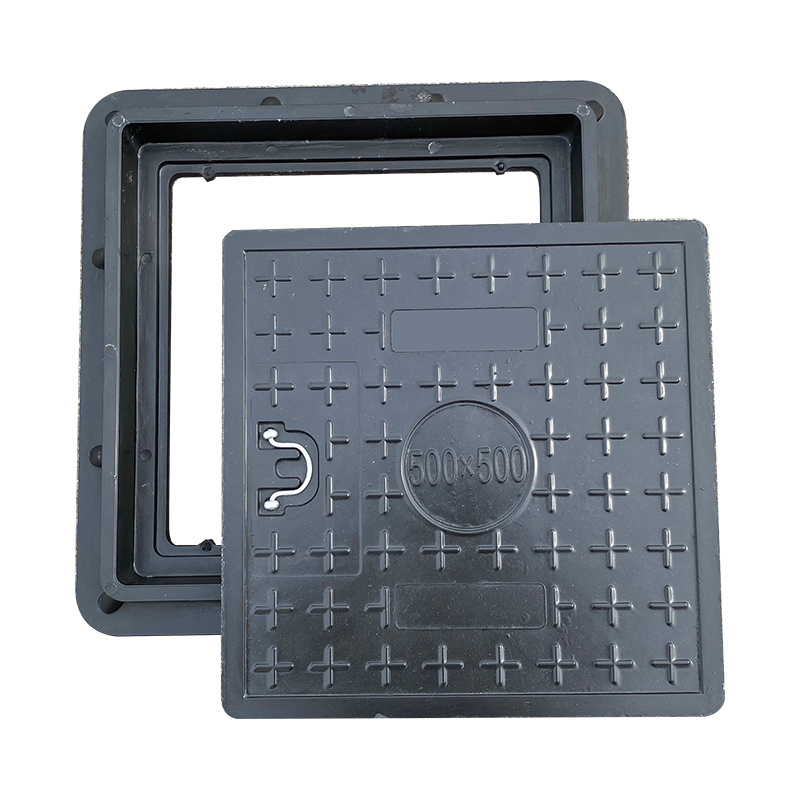

500x500

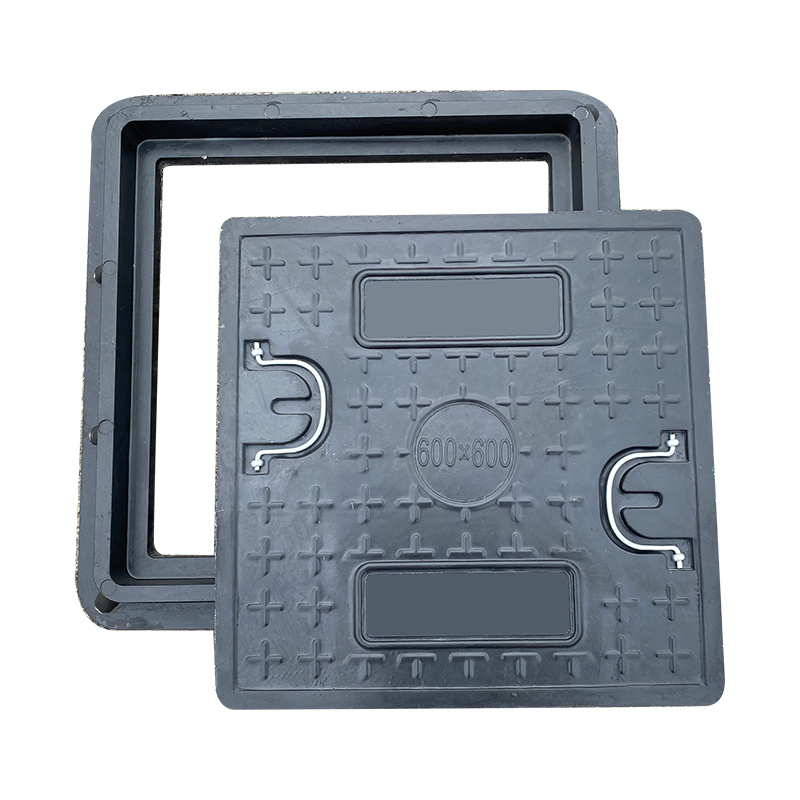

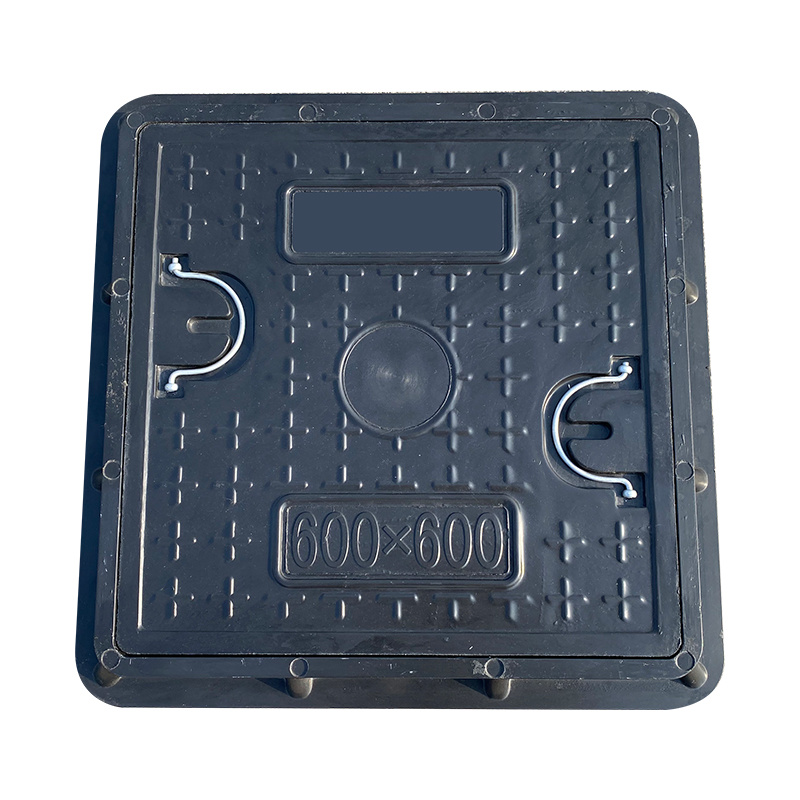

600x600

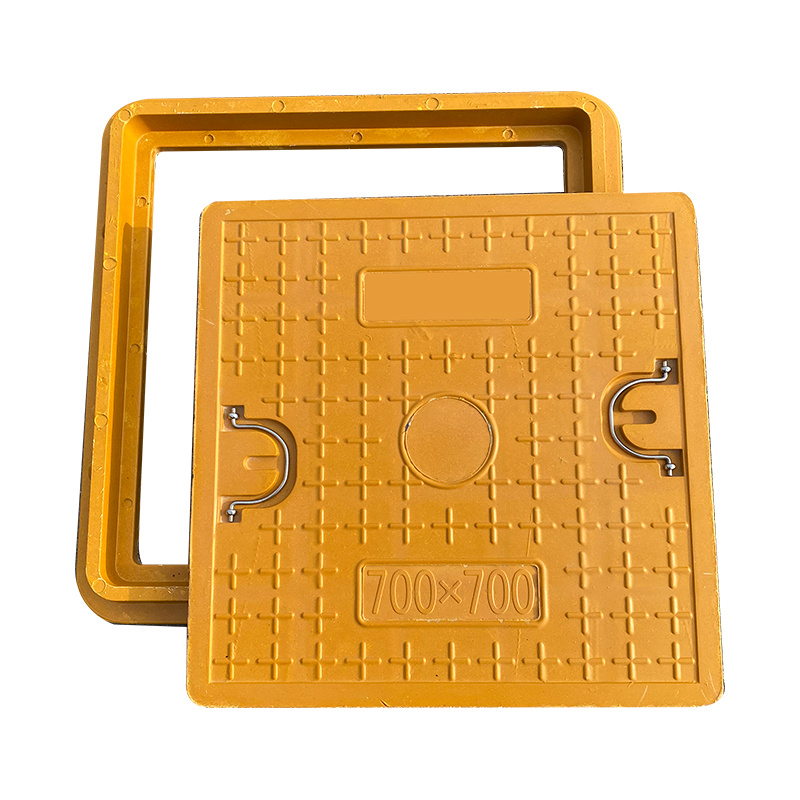

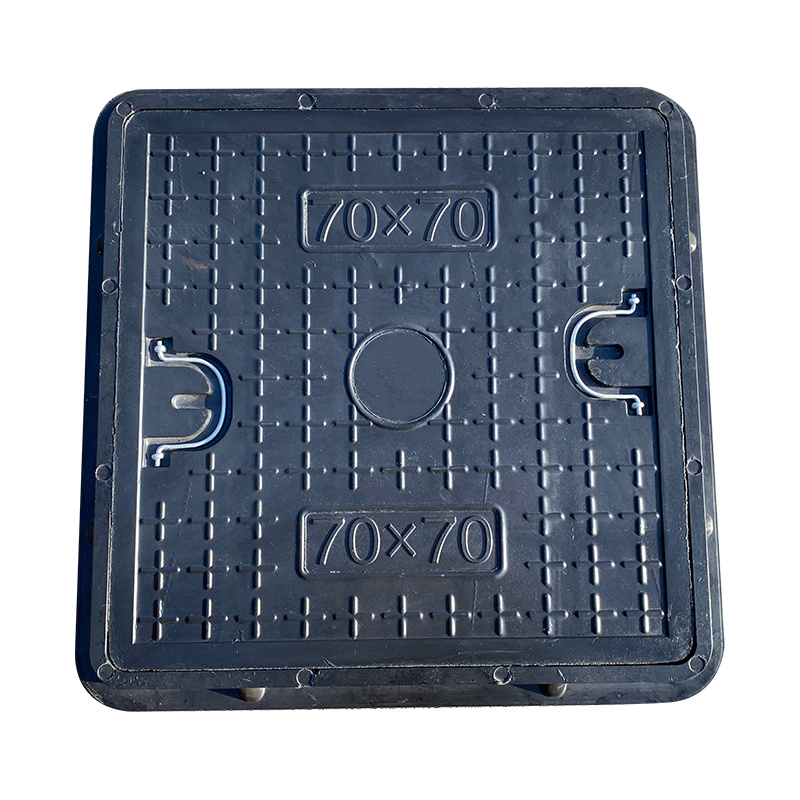

700x700

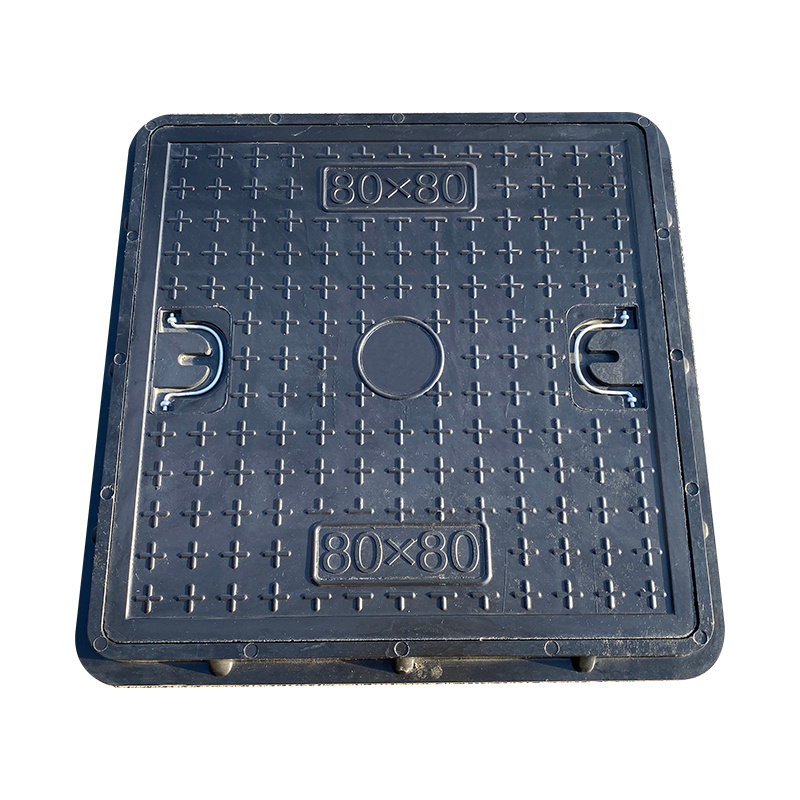

800x800

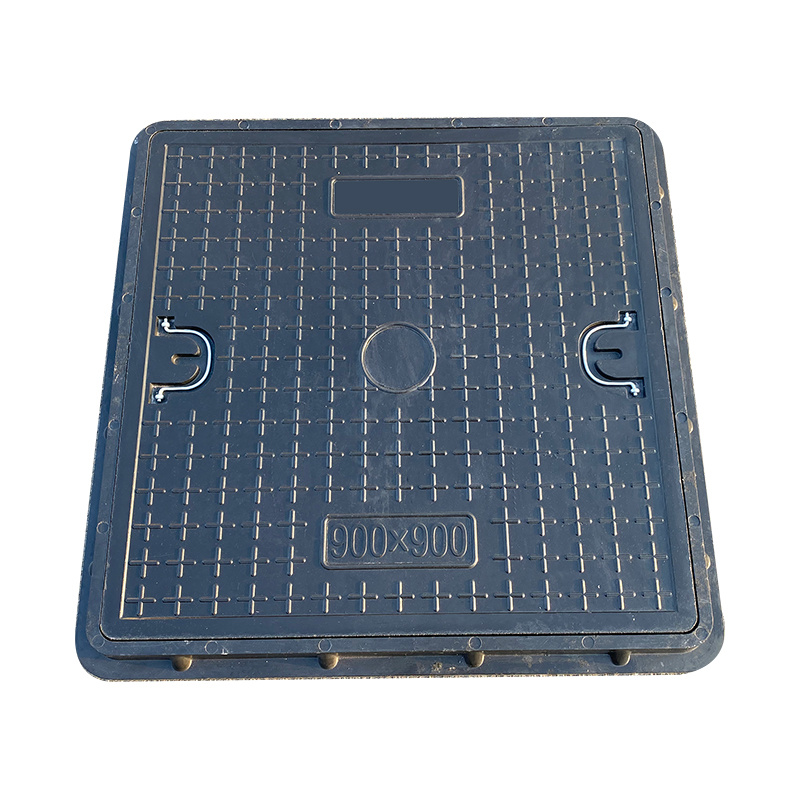

900x900

Specification

Load	Frame Size	Cover Size	Cover Depth	Frame Height	Clear Openning	Weight/kg	Remarks/handle
A15	300x300	250x250	24	35	200x200	3.6	1 small
A15	300x300	250x250	30	45	200x200	5.5	2 small
A15	370x370	300x300	25	38	250x250	5.8	1 small
A15	400x400	350x350	30	42	300x300	7	1 small
A15	400x400	300x300	30	45	250x250	8	1 small
A15	450x450	400x400	40	60	350x350	11	1 small
A15	450x450	400x400	40	60	350x350	13	1 small
A15	500x500	400x400	40	60	350x350	12.5	1 small
A15	500x500	400x400	40	60	350x350	15.5	1 big
A15	550x550	450x450	40	60	400x400	20	2 big
A15	600x600	500x500	40	60	450x450	19	2 big
A15	600x600	500x500	40	60	450x450	21	2 big
A15	600x600	500x500	40	60	450x450	24	2 big
A15	700x700	600x600	40	60	550x550	28	2 big
A15	800x800	700x700	40	60	650x650	38	2 big
A15	900x900	800x800	40	60	750x750	47	2 big

Features

Anti-Slip surface
DSD Manhole Cover’s top surface material has a better slip-resistance value in a wet, dry or worn state to increase safety.

Watertight Seal
Integrated cover creates a watertight seal between the cover and frame.

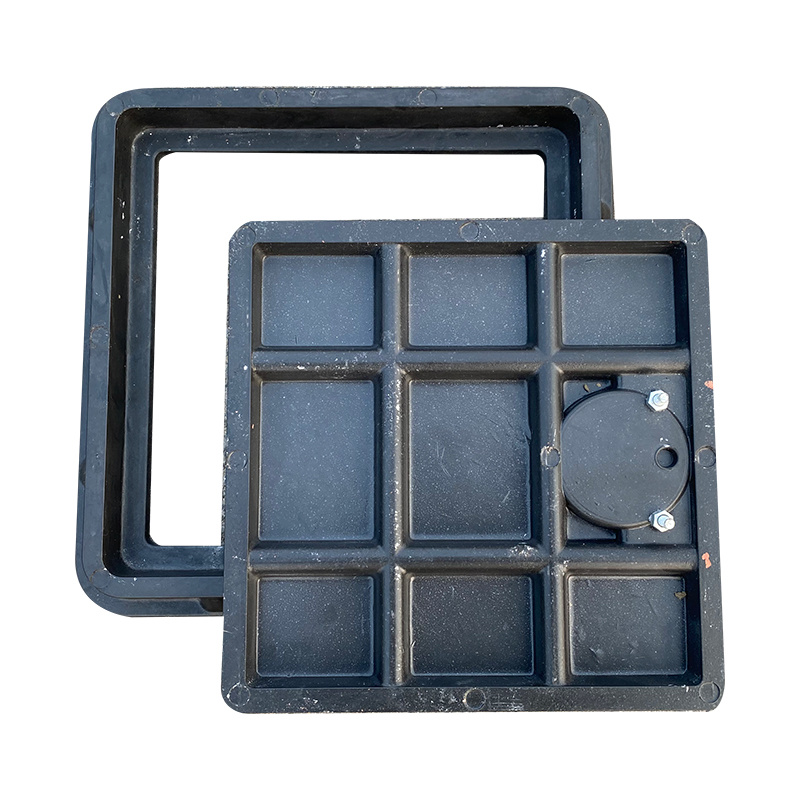

With Central Inspection Port Cover
There is a locking sealing inspection port cover with a net opening of ∅ 350mm(13.8") in the middle of the manhole cover, which is waterproof

Material
frame and inspection cover are made of SMC FRP composite material. The removable side sealing structure adopts corrosion-resistant EPDM rubber, the aluminum sleeve of removable sealing handle adopts aluminum alloy, three m10x40 hexagon socket head locking screws adopt 304 stainless steel, and the locking mechanism of inspection cover adopts aluminum alloy and 304 stainless steel

Lockable
Lockable access covers not only improves site and location security and provides security against theft and malicious damage.

Customized LOGO available
DSD manhole cover have professional engineering department and we can make the special design and mould according customer’s size, pattern, color, load, logo, function requirements.

Advantage

Production

Packing

Transport

1.Standard plywood case, its compressive strength and bearing quality is better

2.The board area is bit, the soil structure is good, it is better in leakproofness and waterproof

3.When importing, the plywood case is with fumigation-free, the procedure is simple.

4.Delivery Detail: within 7-15 days after received your payment

Q & A

What is SMC materials?

SMC composite is a short form of “Sheet Molding Compound”. It’s composed of resin, fiberglass and other chemical polymers, it’s homogeneous material and often used in aerospace composite structures.

The outstanding advantages of SMC composites:

It can maintain good dielectric performance under high frequency, and does not reflect or block the microwave. It is suitable for application in crowded or narrow places, and can effectively avoid the danger of electric shock.
It has effective resistance to water, gasoline, alcohol, electrolyte salt, acetic acid, sodium potassium compounds, asphalt, acid base soil and acid rain corrosion.
Under the combined action of three-dimensional network molecular structure and reinforcing fiber, the material has good impact resistance, easy to be machined, easy to drill and cut, and accurate positioning.
It has strong impact resistance to avoid deformation, with high tensile strength, bending strength and impact toughness.
As a smokeless and non-toxic materials, it does not contain halogens, and it’s an environmentally friendly material that can meet the needs of future development.
The fire retardant can reach to FV0 level, and the smoke & gas level is quasi-safety level 1 (ZA1), which meets the requirements of domestic and international UL94 standards.
It’s poor conductor of heat, has low deformation rate of high-temperature resistance which can reduce the influence of environmental temperature difference on the internal structure of products.
It’s able to adapt to any kind of harsh weathers, it can be used in the climate of -50°C - +160°C for a long time. The protection level is IP54, which can maintain good physical and mechanical properties.
